Malleable Iron

View All

  • Malleable Iron Elbows are available in both black and galvanized finishes.
  • Stocked in sizes from 1/8" to 6".
  • 45o, 90o, Street 45o, and Street 90o Malleable Iron Elbows are available.

Sizes are Nominal Pipe Size (NPS) - size chart

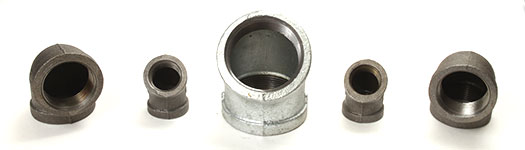

Five different Malleable Iron Elbows in black and galvanized finishes

Temperature/Pressure cross reference for Malleable Iron Elbows
Two different Malleable Iron Elbows in black and galvanized finishes.
Help

To start, select size. Follow the green box to refine selections as desired. Click “Lookup Product” any time after selecting size to display products matching criteria entered so far. Fields autofill when only one choice. Or use search box above.

i

Domestic = Made in the USA

Import = Made anywhere else

i

Class for pipe fittings is a standard defined by the ASME/ASTM. Though stated with a # sign, such as 150# or 3000#, it is not a direct pressure rating.  The pressure rating is dependent on material and temperature and is found by consulting an appropriate reference guide.

i

Black - standard pipe finish.

Galvanized - zinc plated for corrosion resistance.

i

Long Radius = radius is 1.5 times pipe diameter.

Short Radius = radius is the same as the pipe diameter.

Street 90 = female threads one end, male threads the other.
