Handrail

Handrail Elbows are inexpensive buttweld elbows that do not come with any test reports and are used for simple construction projects.
  • Stocked in sizes: 1", 1.25", and 1.50".

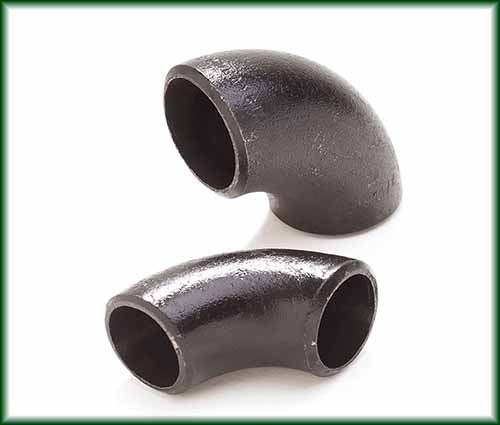

Four different types of handrail buttweld elbows
Handrail Elbows
Help

To start, select size. Follow the green box to refine selections as desired. Click “Lookup Product” any time after selecting size to display products matching criteria entered so far. Fields autofill when only one choice. Or use search box above.

i
Domestic = Made in the USA Import = Made anywhere else
i
Schedule refers to the pipe thickness on which this fitting is to be used, typically values are STD (standard), S/10 (Schedule 10) and XH (extra heavy). These thickness vary with the diameter of the pipe according to published standards.
i
Long Radius = radius is 1.5 times pipe diameter. Short Radius = radius is the same as the pipe diameter. Street 90 = female threads one end, male threads the other.

Elbows » Handrail

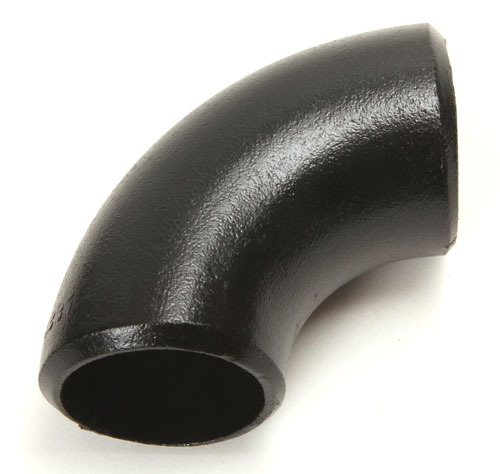

  • Product Name: 1.00 STD LR 90***
  • SKU: 116950
  • Weight: .35
  • Origin: Chinese
  • Schedule: STD
  • Size: 1.00
  • Type: long radius 90

Description:
WELD FITTINGS-NO MTR 1.315 OD

FOR 1" PIPE (1.315 OD) STD (.133 WALL) ANSI B16.9

Price by Quantity:
1 - 9 = $3.94
10 - 99 = $3.50
100 - 499 = $3.15
500 + = $2.80
Quantity:
+
We show 1198 in stock
cart-icon

To estimate shipping please add to cart, click checkout and enter your zipcode on the left.
All items ship from Houston, TX.

Elbows » Handrail

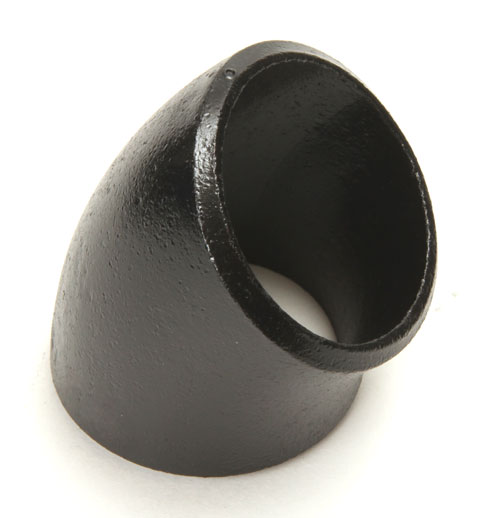

  • Product Name: 1.25 STD 45***
  • SKU: 116093
  • Weight: .40
  • Origin: Chinese
  • Schedule: STD
  • Size: 1.25
  • Type: 45

Description:
WELD FITTINGS-NO MTR 1.66 OD

FOR 1-1/4" PIPE (1.66 OD) STD (.140 WALL) ANSI B16.9

Price by Quantity:
1 - 49 = $8.78
50 - 99 = $7.68
100 - 499 = $6.80
500 + = $6.15
Quantity:
+
We show 100 in stock
cart-icon

To estimate shipping please add to cart, click checkout and enter your zipcode on the left.
All items ship from Houston, TX.

Elbows » Handrail
  • Product Name: 1.25 STD LR 90***
  • SKU: 111300
  • Weight: .59
  • Origin: Chinese
  • Schedule: STD
  • Size: 1.25
  • Type: long radius 90

Description:
WELD FITTINGS-NO MTR 1.66 OD

FOR 1-1/4" PIPE (1.66 OD) STD (.140 WALL) ANSI B16.9

Price by Quantity:
1 - 9 = $3.94
10 - 49 = $3.50
50 - 99 = $3.15
100 + = $2.80
Quantity:
+
We show 2669 in stock
cart-icon

To estimate shipping please add to cart, click checkout and enter your zipcode on the left.
All items ship from Houston, TX.

Elbows » Handrail
  • Product Name: 1.50 STD 45***
  • SKU: 116941
  • Weight: .50
  • Origin: Chinese
  • Schedule: STD
  • Size: 1.50
  • Type: 45

Description:
WELD FITTINGS-NO MTR 1.90 OD

FOR 1-1/2" PIPE (1.90 OD) STD (.145 WALL)

Price by Quantity:
1 - 9 = $4.00
10 - 49 = $3.50
50 - 99 = $3.10
100 + = $2.90
Quantity:
+
We show 267 in stock
cart-icon

To estimate shipping please add to cart, click checkout and enter your zipcode on the left.
All items ship from Houston, TX.

Elbows » Handrail
  • Product Name: 1.50 STD LR 90***
  • SKU: 111602
  • Weight: .80
  • Origin: Chinese
  • Schedule: STD
  • Size: 1.50
  • Type: long radius 90

Description:
WELD FITTINGS-NO MTR 1.90 OD

FOR 1-1/2" PIPE (1.90 OD) STD (.145 WALL)

Price by Quantity:
1 - 9 = $4.70
10 - 49 = $4.23
50 - 99 = $3.88
100 + = $3.64
Quantity:
+
We show 1430 in stock
cart-icon

To estimate shipping please add to cart, click checkout and enter your zipcode on the left.
All items ship from Houston, TX.
