Forged Steel

View All

  • Forged Steel Plugs conform to ASTM A105 and ASME SA105.
  • Stocked in sizes from 1/8" to 4".

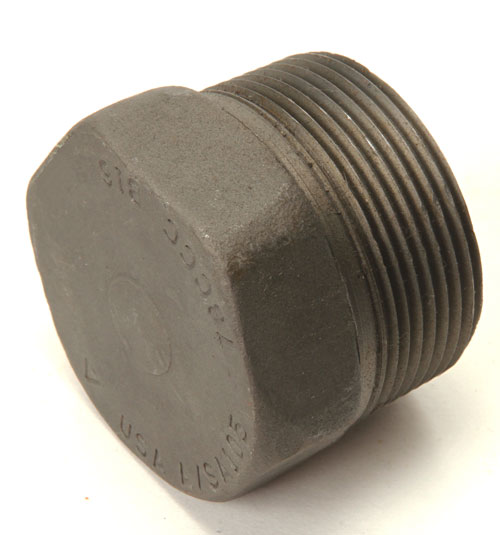

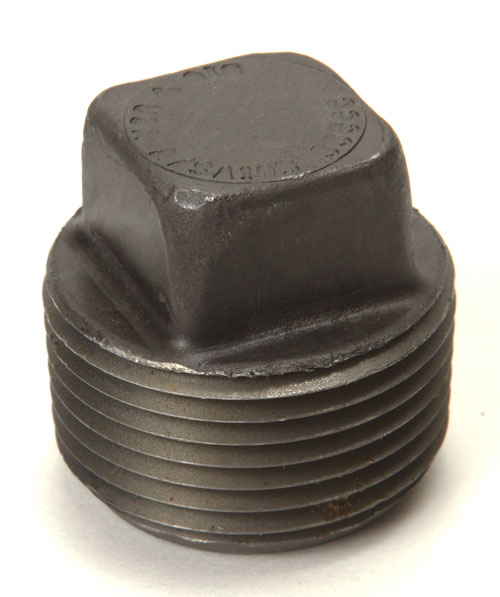

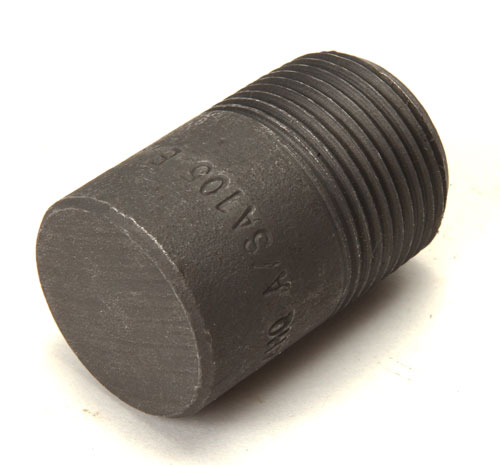

  • Round Head, Hex Head, and Square Head Forged Steel Plugs are available.
  • All are of "bar" class, which means the item is made from solid bar stock and can be used for ratings up to and including class 6000#.

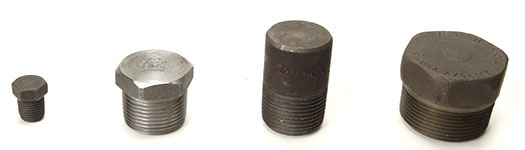

Four different Forged Steel Plugs with hex heads and round heads.
Sizes are Nominal Pipe Size (NPS) - size chart
Two different Forged Steel Plugs.
Help

To start, select size. Follow the green box to refine selections as desired. Click “Lookup Product” any time after selecting size to display products matching criteria entered so far. Fields autofill when only one choice. Or use search box above.

i

Domestic - Made in the USA.

Import - Made elsewhere.

i

Class for pipe fittings is a standard defined by the ASME/ASTM. Though stated with a # sign, such as 150# or 3000#, it is not a direct pressure rating.  The pressure rating is dependent on material and temperature and is found by consulting an appropriate reference guide.

XH relates to pipe wall thickness according to standard chart for given pipe diameter.

bar means the item is made from solid bar stock and can be used for ratings up to and including class 6000#.

i

Black - standard pipe finish.

Galvanized - zinc plated for corrosion resistance.

i

Threaded - standard exposed head.

Threaded by Socket - hex socket used to turn plug.

i

Hex, Round, or Square head.
